Pharmaceutical Spray Drying

What is Pharmaceutical Spray Drying

Pharmaceutical Spray drying is a simple yet incredibly flexible technology that can transform liquids into powders in seconds.

Manipulation of either the feed solution composition and/or the spray drying process parameters allows the creation of spray-dried powders with a range of both physical and aerodynamic properties. Whilst formulation and process development for pharmaceutical spray drying can be readily undertaken at a small, even milligram scale if the drug is in short supply, the process is highly reproducible and scalable, with established models allowing straightforward scale up to produce kilograms of material for toxicology and clinical studies.

There are several key features of the spray drying process that can be manipulated to enhance the formulation and delivery of small molecules and biologics. In many cases, several of these features can be combined and as a result the target product performance profile can subsequently be achieved.

Benefits of Spray Drying

Enhanced bioavailability of poorly soluble compounds.

Consistent particle size distribution.

Alternative to freeze drying to stabilise biologics.

Enables modified release dosage forms.

Applications of Pharmaceutical Spray Drying

Pharmaceutical spray drying offers versatile applications in various drug delivery methods.

It excels in particle engineering, making it ideal for pulmonary and nasal delivery systems, where precise particle size and distribution are crucial for effective drug deposition.

Additionally, spray drying facilitates the production of solid dosage forms like tablets and capsules, ensuring uniform drug delivery and dosage accuracy. Furthermore, it enables the creation of solid dispersion systems (SDDs), enhancing bioavailability by improving drug solubility and dissolution rates, thus optimizing therapeutic outcomes.

  • Particle engineering – ideal for pulmonary and nasal delivery
  • Improved bioavailability by producing SDDs
  • Production of solid dosage forms – capsules and tablets
  • Modified release – modify PK/sustained release
  • Stabilisation of biologicals – a viable, more cost-effective alternative to freeze-drying
Spray drying a solution of API and excipients to create a dry powder
  • Producing dry powders for capsules/tablets
  • Stabilisation of biologics (alternative to freeze drying)
  • Enhanced solubility /bioavailability of poorly soluble APIs
Spray drying to create particles with defined size/aerodynamic properties
  • Engineering powders for nasal delivery
  • Engineering powders for pulmonary delivery
Modified solubility/release by co-spray drying with enteric polymers
  • Targeted release of API in the GI tract
  • Localised/delayed release profile

Spray Drying Expertise

Upperton is world-renowned for its’ spray drying expertise. We have a range of spray dryers available, from development dryers that can work with the smallest quantities (milligrams) of drug, to pilot-scale dryers that can produce kilogram quantities of powder in a single day of operation. These are available in our research and development facility, and in our GMP facility, meaning that processes can be easily and seamlessly developed, scaled up and then transferred for clinical manufacture.

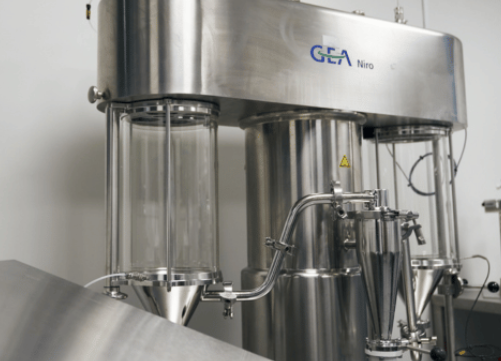

GEA Niro SD Micro Spray Dryer

1 Unit Available

5g-3kg.
Air/inert (N2) drying gas
GMP manufacturing under nitrogen.

Buchi Mini Spray Dryer B-290
Upperton's R&D Pharamaceutical Spray Drying Lab, containing Buchi B290s and a ProCepT 4M8-TriX

8 Units Available

100mg-100g.
Air/inert (N2) drying gas.
Early formulation screening and development.

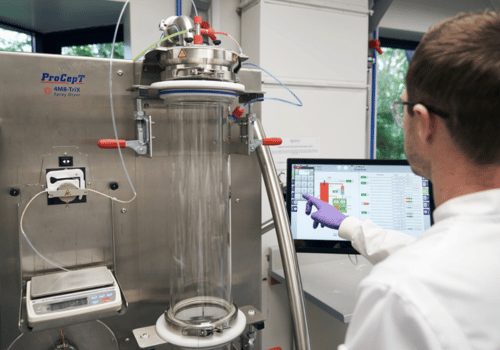

Procept 4M8-Trix Spray Dryer

3 Units Available

100mg-400g.
2 fluid and ultrasonic atomisation. Smaller scale GMP processes.
Particle engineering for nasal and pulmonary delivery.

Choosing a CDMO Partner For Spray Drying

When it comes to choosing a Contract Development and Manufacturing Organisation (CDMO) partner for your pharmaceutical product development, there are several factors to consider.

Firstly, you need to ensure that the CDMO has expertise in spray drying technology. As mentioned earlier, spray drying is a crucial process in formulating poorly soluble drugs and producing various dosage forms. Therefore, the CDMO you choose must have advanced equipment, such as the ProCepT 4M8-TriX Spray Dryer or the GEA Niro SD Micro Spray Dryer, to handle these complex formulation challenges.

Another important factor to consider is the scale-up capabilities of the CDMO. Depending on your project requirements, you may need a CDMO that can handle small-scale development batches, or larger-scale production batches. Having access to a range of spray dryers allows for flexibility in process optimization and ensures that the CDMO can meet your specific needs.

Our Guide to Choosing a CDMO Partner

Enhance the Solubility and Bioavailability of Poorly Soluble APIs

Manipulation of either the feed solution composition and/or the spray drying process parameters allows the creation of spray-dried powders with a range of both physical and aerodynamic properties.

Whilst formulation and process development for pharmaceutical spray drying can be readily undertaken at a small, even milligram scale if the drug is in short supply, the process is highly reproducible and scalable, with established models allowing straightforward scale up to produce kilograms of material for toxicology and clinical studies.

There are several key features of the spray drying process that can be manipulated to enhance the formulation and delivery of small molecules and biologics. In many cases, several of these features can be combined and as a result the target product performance profile can subsequently be achieved.

Formulation Development Services for Spray Drying

Future Applications of Spray Drying in Pharmaceuticals

Spray drying as an enabling technology for poorly soluble oral drugs is likely to continue to grow as amorphous materials become more established and widely accepted by the industry. However, future and sizable growth is likely to come from its application in biopharmaceuticals such as in the isolation and preparation of peptides, proteins, and monoclonal antibodies.

The cost and throughput advantage over traditional lyophilization and the ability to deal with far more complex formulations and solvent systems is likely to drive its gradual introduction in these fields.

Aseptic spray drying is still in the early stage of implementation but robust steps have recently been undertaken in the design of these units as well as in aseptic powder filling, a complementing unit operation. Another area of potential growth is the use of spray drying to produce inhalable drugs; one of the major drawbacks associated with conventional lactose blends is the need to balance adhesive-cohesive forces between the drug substance and the carrier, with a significant amount of drug not detaching from the lactose and being inevitably deposited in the mouth/throat; spray drying, as a continuous process, can be used to overcome this challenge by enabling the preparation of composite particles where, via a precise fine-tuning of particle size distribution during development (and tight control during manufacturing), very high and reproducible respirale fractions can be obtained.

Furthermore, spray drying has shown promising results in improving drug bioavailability for poorly water-soluble drugs, making it a valuable technique for future pharmaceutical applications, particularly in addressing the issue of poor bioavailability.

Speak to us about spray drying

Why Upperton

At Upperton, we specialise in the formulation and development of complex molecules, supporting a wide range of advanced drug delivery systems.

Our expertise spans:

By combining scientific excellence with practical development expertise, we help overcome the challenges of complex drug products and accelerate their path to clinic and market.

About Us

partnership

Why Partner with Upperton

We provide fully integrated services across every stage of drug product development:

Microscope and analysis equipment at the Upperton facility

One Site

Integrated, end-to-end capabilities delivered under one roof.

Upperton scientist examining a formulation flask

One Team

The same team from your early-stage development through to preparation for commercial launch.

Test tubes used in complex molecule formulation development

Complex Molecule Expertise:

Proven track record in solving formulation and delivery challenges.

Upperton senior leadership overseeing laboratory work

Executive Leadership on Every Project:

Direct access to experienced senior leadership for strategic oversight and decision-making.

Download our spray drying fact sheet to learn more about our spray drying services.

Download now

Spray Drying FAQs

Pharmaceutical spray drying is a process that converts a liquid solution or suspension into a dry powder form. It involves atomizing the liquid into fine droplets and then rapidly drying these droplets by exposing them to a stream of hot air or gas, causing the solvent to evaporate and leaving behind solid particles.

Spray drying offers several advantages in pharmaceutical formulations, including precise control over particle size and distribution, improved solubility of poorly soluble drugs, enhanced bioavailability, ease of scale-up, and versatility in producing various dosage forms such as powders, granules, and microspheres.

Pharmaceutical spray drying can be used to produce a wide range of products, including inhalable powders for pulmonary and nasal delivery, solid dispersion systems (SDDs) to improve drug solubility, modified release formulations for controlled drug release, and stable formulations of biologics.

API processing considerations include: Solubility and bioavailability challenges, excipient selection, solvent selection and removal.
